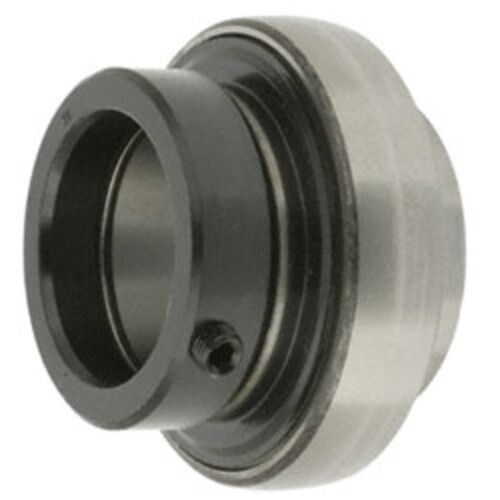

YEL 205-100-2F - SKF
- Bore / Inner Diameter Inch: 1
- Bore / Inner Diameter MM: 25.4
- Outside Diameter Inch: 2.047
- Outside Diameter MM: 51.994
- Outer Race Width Inch: 0.591
- Outer Race Width MM: 15.011
- Seal Type: M Seal
- Snap Ring: No
SPECIFICATIONS
| Bore / Inner Diameter Inch | 1 |
|---|---|
| Bore / Inner Diameter MM | 25.4 |
| Outside Diameter Inch | 2.047 |
| Outside Diameter MM | 51.994 |
| Outer Race Width Inch | 0.591 |
| Outer Race Width MM | 15.011 |
| Seal Type | M Seal |
| Snap Ring | No |
| Bearing Locking Style | Eccentric Collar |
| Length Across Bore Inch | 1.748 |
| Length Across Bore MM | 44.399 |
| Relubricatable | Yes |
| Rolling Element | Ball Bearing |
| Inner Race Profile | Wide Inner Ring |
| Bearing Profile | Spherical |
