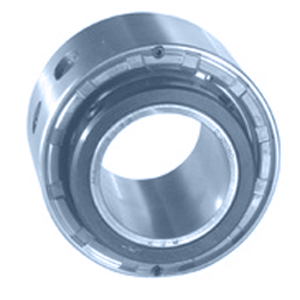

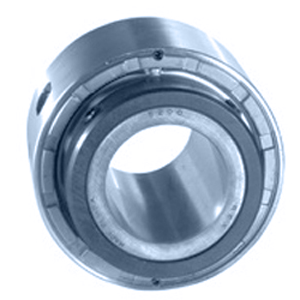

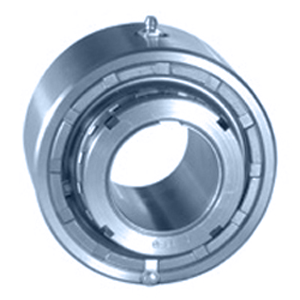

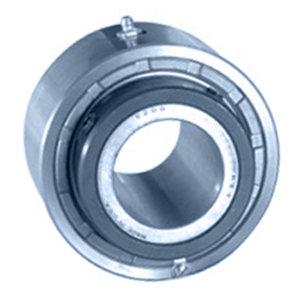

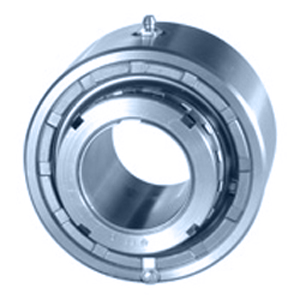

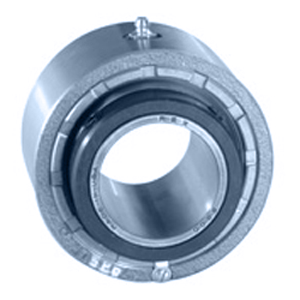

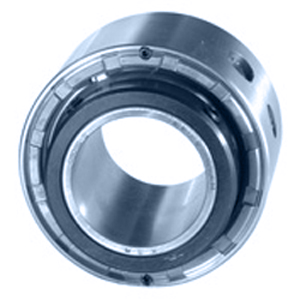

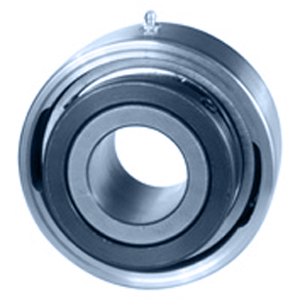

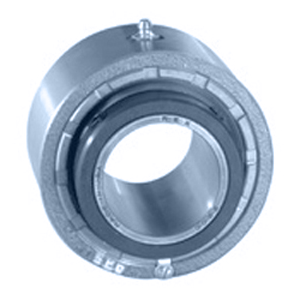

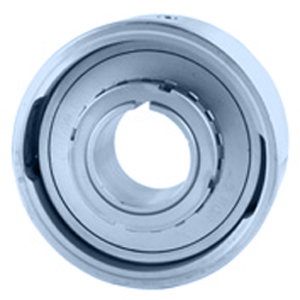

A cartridge unit bearing packages the bearing insert and housing into a single sealed, cylindrical assembly designed to press or slide directly into a mounting bore, rather than bolting on like a traditional pillow block or flange unit. This compact, self-contained design makes cartridge units a practical choice on equipment where space around the shaft is limited or where a bolt-on mounted bearing housing isn’t feasible. Like other mounted bearings, cartridge units rely on an insert bearing with a spherical outer race to accommodate minor shaft misalignment, and they’re typically pre-lubricated and sealed to reduce maintenance requirements. 3BG Supply Co. stocks cartridge unit bearings alongside take-up units for applications that also need belt or chain tensioning adjustment.
Find the right Cartridge Unit Bearing for your needs.
FAQs
What is a cartridge unit bearing?
A cartridge unit bearing is a mounted bearing style where the insert bearing and housing are combined into a single cylindrical assembly that fits into a round mounting bore, rather than bolting to a flat or flanged surface. It's essentially a self-contained, drop-in alternative to a pillow block or flange bearing.
When should I use a cartridge unit bearing instead of a pillow block?
Cartridge units are a good fit when space constraints rule out a bolt-on housing, or when equipment design already includes a machined bore for a cylindrical unit to slide or press into. Pillow blocks remain the more common choice when a flat mounting surface is already available.
Are cartridge unit bearings self-aligning?
Yes — most cartridge unit bearings use the same spherical insert bearing design found in other mounted bearings, allowing the unit to accommodate minor angular misalignment between the shaft and the mounting bore.
How are cartridge unit bearings sealed and lubricated?
Cartridge unit bearings are typically factory-lubricated and fitted with contact or labyrinth seals on both sides of the housing to keep contaminants out. Depending on the design, some units include a relubrication fitting for periodic maintenance, while fully sealed versions are intended to run maintenance-free until replacement.
What industries commonly use cartridge unit bearings?
Cartridge unit bearings show up in conveyor systems, packaging equipment, agricultural machinery, and other applications where a compact, easily replaceable shaft support is needed. They're often used alongside pillow block and flange-style mounted bearings on the same piece of equipment.
