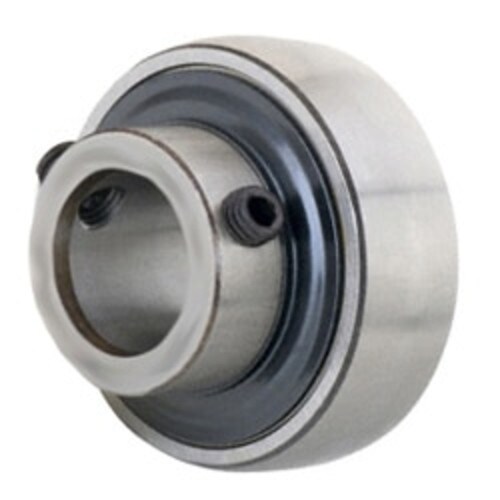

YAT 206-103 - SKF
- Bore / Inner Diameter Inch: 1.188
- Bore / Inner Diameter MM: 30.175
- Outside Diameter Inch: 2.441
- Outside Diameter MM: 62.001
- Outer Race Width Inch: 0.709
- Outer Race Width MM: 18.009
- Seal Type: M Seal
- Snap Ring: No
SPECIFICATIONS
| Bore / Inner Diameter Inch | 1.188 |
|---|---|
| Bore / Inner Diameter MM | 30.175 |
| Outside Diameter Inch | 2.441 |
| Outside Diameter MM | 62.001 |
| Outer Race Width Inch | 0.709 |
| Outer Race Width MM | 18.009 |
| Seal Type | M Seal |
| Snap Ring | No |
| Bearing Locking Style | Set Screw |
| Length Across Bore Inch | 1.221 |
| Length Across Bore MM | 31.013 |
| Relubricatable | Yes |
| Rolling Element | Ball Bearing |
| Inner Race Profile | Narrow Inner Ring |
| Bearing Profile | Spherical |
