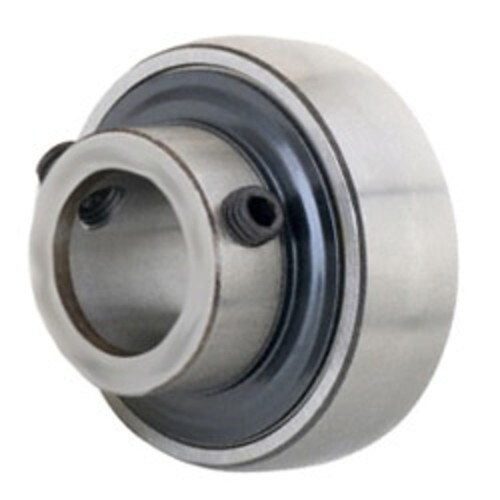

YAR 209-108-2F - SKF
- Bore / Inner Diameter Inch: 1.5
- Bore / Inner Diameter MM: 38.1
- Outside Diameter Inch: 3.347
- Outside Diameter MM: 85.014
- Outer Race Width Inch: 0.827
- Outer Race Width MM: 21.006
- Seal Type: M Seal
- Snap Ring: No
SPECIFICATIONS
| Bore / Inner Diameter Inch | 1.5 |
|---|---|
| Bore / Inner Diameter MM | 38.1 |
| Outside Diameter Inch | 3.347 |
| Outside Diameter MM | 85.014 |
| Outer Race Width Inch | 0.827 |
| Outer Race Width MM | 21.006 |
| Seal Type | M Seal |
| Snap Ring | No |
| Bearing Locking Style | Set Screw |
| Length Across Bore Inch | 1.937 |
| Length Across Bore MM | 49.2 |
| Relubricatable | Yes |
| Rolling Element | Ball Bearing |
| Inner Race Profile | Wide Inner Ring |
| Bearing Profile | Spherical |
