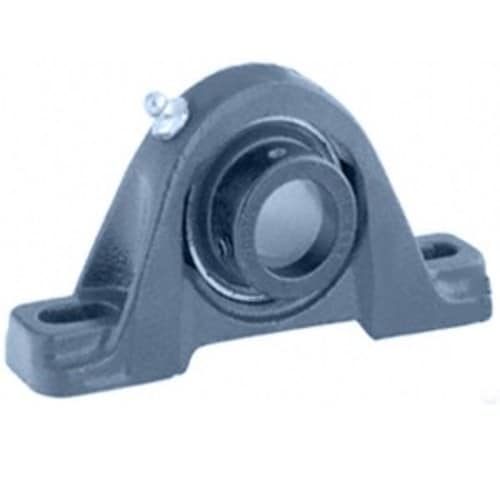

VAK1 1/2 - TIMKEN
- Bore / Inner Diameter Inch: 1.5
- Bore / Inner Diameter MM: 38.1
- Number of Mounting Holes: 2
- Bolt Center to Center Inch: 5.4
- Bolt Center to Center MM: 136
- Bearing Locking Style: Eccentric Collar
SPECIFICATIONS
| Bore / Inner Diameter Inch | 1.5 |
|---|---|
| Bore / Inner Diameter MM | 38.1 |
| Number of Mounting Holes | 2 |
| Bolt Center to Center Inch | 5.4 |
| Bolt Center to Center MM | 136 |
| Bearing Locking Style | Eccentric Collar |
| Rolling Element | Ball Bearing |
| Housing Material | Cast Iron |
| Housing Style | 2 Bolt Pillow Block |
| Expansion / Non-Expansion | Non-expansion |
| Base to Center Height Inch | 1.938 |
| Base to Center Height MM | 49.225 |
| Bearing Insert Part Number | GRA108RRB |
