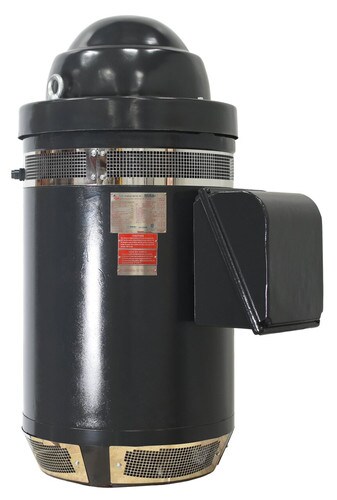

V1-30D4-W28610B - NORTH AMERICAN
This product has superseded NAE-VHS-30-4-1.188CP
- HP: 30
- Full Load RPM: 1785
- Enclosure: WP1
- Frame: 286TP
NEMA DESIGN B
- Maximum 5% Slip
- High To Medium Starting Current
- Normal Locked Rotor Torque
- Normal Breakdown Torque
- Suited For A Broad Variety Of Applications - Like Fans And Pumps
SPECIFICATIONS
Full Load RPM | 1770.0 |
---|---|
RPM | 1770.0 |
Frame | 286TP |
Voltage | 230/460 VAC|230 VAC|460 VAC |
Service Factor | 1.15 |
Insulation Class | F |
NEMA Design | B |
NEMA Code | H |
Locked Rotor Amps at Rated Voltage | 256.0 |
Power Factor | 0.86 |
Drive End Bottom Bearing | 7312B |
Inverter Rated or Duty | Inverter Rated |
Phase | Three Phase |
Part Winding Start 230V | Yes |
Down Thrust | 3200.0 |
Model Number | V1-30D4-W28610B |
Weight (lbs) | 590.0 |
Application | Vertical Hollow Shaft |
HP Range | 30.0 |
HP | 30.0 |
GTIN | 192999064313 |
Motor Enclosure Type | Weather Protected|WP1 |
RPM Range | 1770.0 |
