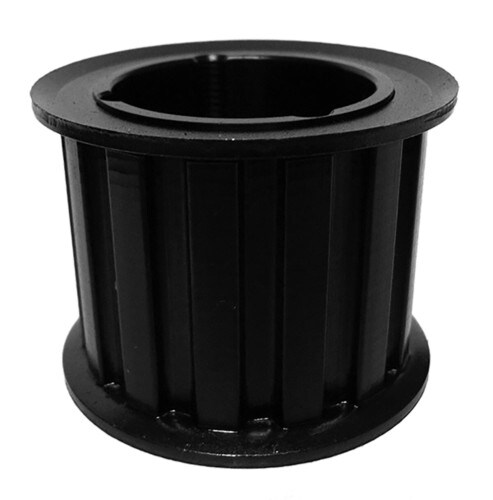

TL20H150 - B & B MANUFACTURING
- Teeth: 20
- Tooth Style: H
- Type: 3F
- Bushing Style: 1215
SPECIFICATIONS
| Teeth | 20 |
|---|---|
| Tooth Style | H |
| Type | 3F |
| Bushing Style | 1215 |
| Bore Type | TL |
| Pitch Diameter Inch | 3.183 |
| Outer Diameter Inch | 3.129 |
| Flange Diameter Inch | 3.256 |
| Minimum Bore Inch | 0.500 |
| Maximum Bore Inch | 1.250 |
| Face Width Inch | 1.812 |
| Overall Length Inch | 1.812 |
| Pulley Belt Width Inch | 1.562 |
| Pitch Diameter MM | 80.848 |
| Outer Diameter MM | 79.477 |
| Flange Diameter MM | 82.702 |
| Face Width MM | 46.025 |
| Overall Length MM | 46.025 |
| Pulley Belt Width MM | 39.675 |
| Material | Cast Iron |
| Finish | Black Oxide |
| Flange Material | Steel |
