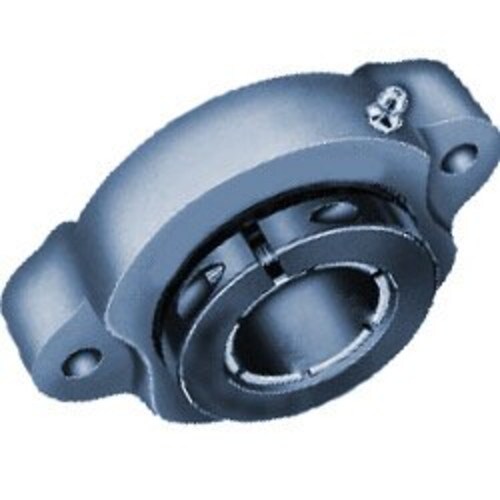

TFT15TC-1ARZ - SEALMASTER
- Bore / Inner Diameter Inch: 0.938
- Bore / Inner Diameter MM: 23.825
- Number of Mounting Holes: 2
- Bolt Center to Center Inch: 3
- Bolt Center to Center MM: 76.2
- Bearing Locking Style: Concentric Collar
SPECIFICATIONS
| Bore / Inner Diameter Inch | 0.938 |
|---|---|
| Bore / Inner Diameter MM | 23.825 |
| Number of Mounting Holes | 2 |
| Bolt Center to Center Inch | 3 |
| Bolt Center to Center MM | 76.2 |
| Bearing Locking Style | Concentric Collar |
| Rolling Element | Ball Bearing |
| Housing Material | Cast Iron |
| Housing Style | 2 Bolt Flange Block |
| Expansion / Non-Expansion | Non-expansion |
| Length Across Bore Inch | 1.375 |
| Length Across Bore MM | 34.925 |
