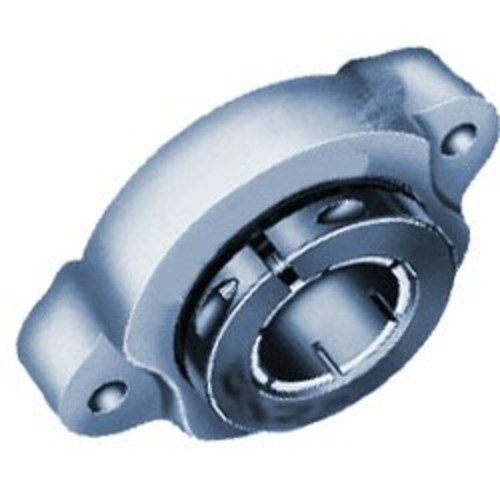

TFT-23 - SEALMASTER
- Bore / Inner Diameter Inch: 1.438
- Bore / Inner Diameter MM: 36.525
- Number of Mounting Holes: 2
- Bolt Center to Center Inch: 3.938
- Bolt Center to Center MM: 100.025
- Bearing Locking Style: Set Screw
SPECIFICATIONS
| Bore / Inner Diameter Inch | 1.438 |
|---|---|
| Bore / Inner Diameter MM | 36.525 |
| Number of Mounting Holes | 2 |
| Bolt Center to Center Inch | 3.938 |
| Bolt Center to Center MM | 100.025 |
| Bearing Locking Style | Set Screw |
| Rolling Element | Ball Bearing |
| Housing Material | Cast Iron |
| Housing Style | 2 Bolt Flange Block |
| Expansion / Non-Expansion | Non-expansion |
| Length Across Bore Inch | 1.688 |
| Length Across Bore MM | 42.87 |
