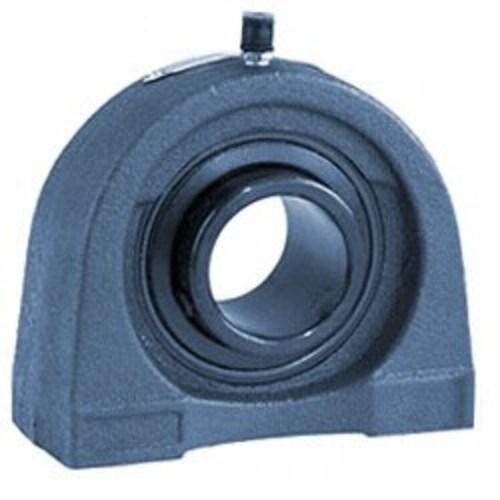

TB-28 - SEALMASTER
- Bore / Inner Diameter Inch: 1.75
- Bore / Inner Diameter MM: 44.45
- Number of Mounting Holes: 2
- Bolt Center to Center Inch: 3.8
- Bolt Center to Center MM: 96
- Bearing Locking Style: Set Screw
SPECIFICATIONS
Bore / Inner Diameter Inch | 1.75 |
---|---|
Bore / Inner Diameter MM | 44.45 |
Number of Mounting Holes | 2 |
Bolt Center to Center Inch | 3.8 |
Bolt Center to Center MM | 96 |
Bearing Locking Style | Set Screw |
Rolling Element | Ball Bearing |
Housing Material | Cast Iron |
Housing Style | 2 Bolt Tapped Base Pillow Block |
Base to Center Height Inch | 2.125 |
Base to Center Height MM | 53.98 |
Bearing Insert Part Number | 2-112 |
Length Across Bore Inch | 1.938 |
Length Across Bore MM | 49.225 |
Relubricatable | Yes |
Mounting Bolts Inch | 1/2 |
