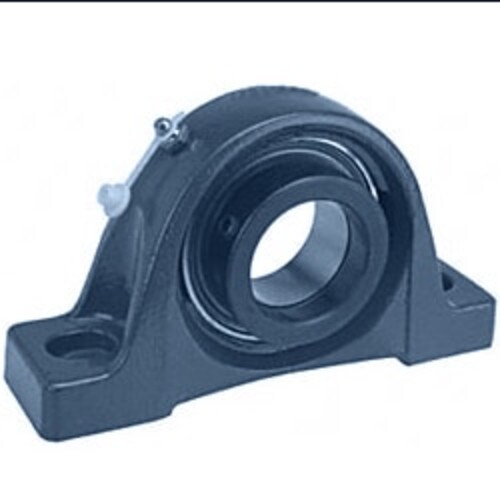

SY 40 FM - SKF
- Bore / Inner Diameter Inch: 1.575
- Bore / Inner Diameter MM: 40
- Number of Mounting Holes: 2
- Bolt Center to Center Inch: 5.3
- Bolt Center to Center MM: 134.3
- Max Nom Bolt Ctr to Ctr Inch: 0
- Max Nom Bolt Ctr to Ctr MM: 0
- Bearing Locking Style: Eccentric Collar
SPECIFICATIONS
| Bore / Inner Diameter Inch | 1.575 |
|---|---|
| Bore / Inner Diameter MM | 40 |
| Number of Mounting Holes | 2 |
| Bolt Center to Center Inch | 5.3 |
| Bolt Center to Center MM | 134.3 |
| Bearing Locking Style | Eccentric Collar |
| Rolling Element | Ball Bearing |
| Housing Material | Cast Iron |
| Housing Style | 2 Bolt Pillow Block |
| Base to Center Height Inch | 1.937 |
| Base to Center Height MM | 49.2 |
