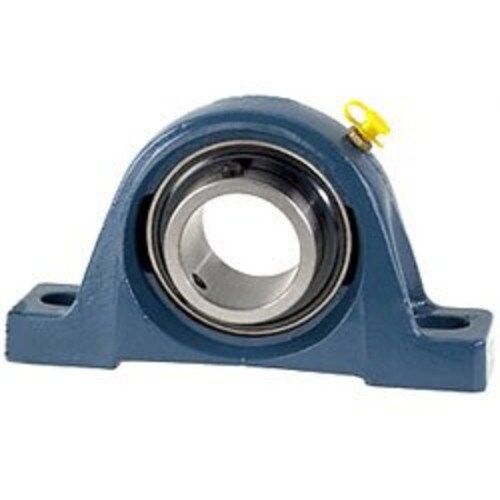

SY 1.7/16 RM - SKF

(0)No Reviews yet
$52.62

Details

Details

Bore / Inner Diameter Inch1.438
Bore / Inner Diameter MM36.525
Number of Mounting Holes2
Bolt Center to Center Inch5
Bolt Center to Center MM127
Max Nom Bolt Ctr to Ctr Inch5.25
Max Nom Bolt Ctr to Ctr MM133.35
Bearing Locking StyleSet Screw
Rolling ElementBall Bearing
Housing MaterialCast Iron
Housing Style2 Bolt Pillow Block
Expansion / Non-ExpansionNon-expansion
Min Nom Bolt Ctr to Ctr Inch4.688
Min Nom Bolt Ctr to Ctr MM119.075
Base to Center Height Inch1.875
Base to Center Height MM47.63
Bearing Insert Part NumberYAT 207-107
New product number for this items is: P2B 107-RM

UNIT PRICE:

$52.62



UNIT PRICE:

SPECIFICATIONS

Bore / Inner Diameter Inch1.438
Bore / Inner Diameter MM36.525
Number of Mounting Holes2
Bolt Center to Center Inch5
Bolt Center to Center MM127
Max Nom Bolt Ctr to Ctr Inch5.25
Max Nom Bolt Ctr to Ctr MM133.35
Bearing Locking StyleSet Screw
Rolling ElementBall Bearing
Housing MaterialCast Iron
Housing Style2 Bolt Pillow Block
Expansion / Non-ExpansionNon-expansion
Min Nom Bolt Ctr to Ctr Inch4.688
Min Nom Bolt Ctr to Ctr MM119.075
Base to Center Height Inch1.875
Base to Center Height MM47.63
Bearing Insert Part NumberYAT 207-107
New product number for this items is: P2B 107-RM
