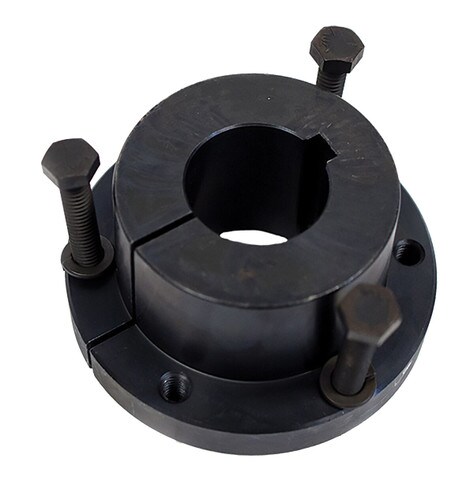

SKX2-1/4 - B & B MANUFACTURING
- Bushing Style: SK
- Bore Type: Finished Bore
- Bore / Inner Diameter Inch: 2.25
- Minimum Bore Inch: 0.500
SPECIFICATIONS
| Bushing Style | SK |
|---|---|
| Bore Type | Finished Bore |
| Bore / Inner Diameter Inch | 2.25 |
| Minimum Bore Inch | 0.500 |
| Maximum Bore Inch | 2.625 |
| Bore / Inner Diameter MM | 57.15 |
| Thread Size | 5/16-18 x 2 |
| A Dim Inch | 0.5 |
| B Dim Inch | 2.813 |
| D Dim Inch | 3.875 |
| E Dim Inch | 1.375 |
| F Dim Inch | 1.25 |
| I Dim Inch | 1.875 |
| Torque Capacity Lb/Inch | 7000 |
| Bolt Circle Inch | 3.3125 |
| Material | Steel |
| Finish | Black Oxide |
