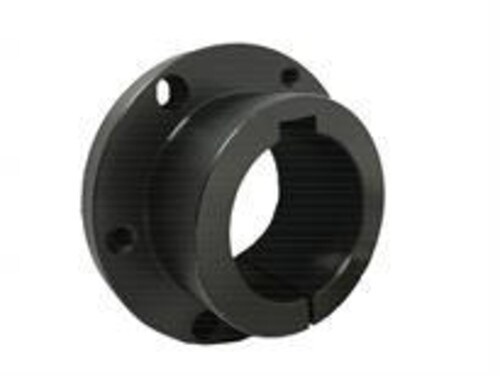

SDSX30MM - B & B MANUFACTURING
- Bushing Style: SDS
- Bore Type: Finished Bore
- Bore / Inner Diameter Inch: 1.181
- Minimum Bore Inch: 0.500
SPECIFICATIONS
| Bushing Style | SDS |
|---|---|
| Bore Type | Finished Bore |
| Bore / Inner Diameter Inch | 1.181 |
| Minimum Bore Inch | 0.500 |
| Maximum Bore Inch | 2.000 |
| Bore / Inner Diameter MM | 30 |
| Thread Size | 1/4-20 x 1-3/8 |
| A Dim Inch | 0.438 |
| B Dim Inch | 2.188 |
| D Dim Inch | 3.188 |
| E Dim Inch | 0.875 |
| F Dim Inch | 0.75 |
| I Dim Inch | 1.313 |
| Torque Capacity Lb/Inch | 5000 |
| Bolt Circle Inch | 2.6875 |
| Material | Steel |
| Finish | Black Oxide |
