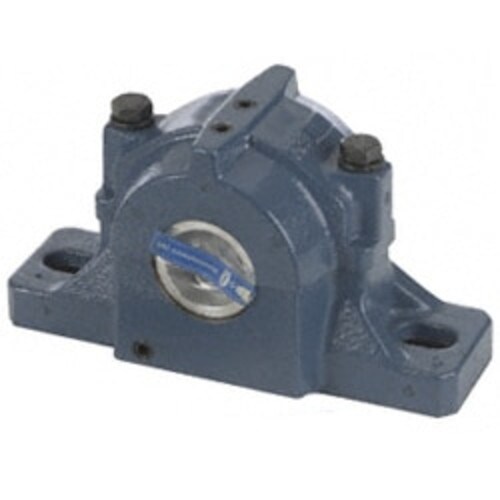

SAF 1517/C3 - SKF
- Bore / Inner Diameter Inch: 2.938
- Bore / Inner Diameter MM: 74.625
- Number of Mounting Holes: 2
- Bolt Center to Center Inch: 10.4
- Bolt Center to Center MM: 264.2
- Max Nom Bolt Ctr to Ctr Inch: 11
- Max Nom Bolt Ctr to Ctr MM: 279.4
- Bearing Locking Style: Tapered Adapter Sleeve
SPECIFICATIONS
| Bore / Inner Diameter Inch | 2.938 |
|---|---|
| Bore / Inner Diameter MM | 74.625 |
| Number of Mounting Holes | 2 |
| Bolt Center to Center Inch | 10.4 |
| Bolt Center to Center MM | 264.2 |
| Max Nom Bolt Ctr to Ctr Inch | 11 |
| Max Nom Bolt Ctr to Ctr MM | 279.4 |
| Bearing Locking Style | Tapered Adapter Sleeve |
| Rolling Element | Ball Bearing |
| Housing Material | Cast Iron |
| Housing Style | 2 Bolt Pillow Block |
| Expansion / Non-Expansion | Non-expansion |
| Min Nom Bolt Ctr to Ctr Inch | 9.875 |
| Min Nom Bolt Ctr to Ctr MM | 250.825 |
| Base to Center Height Inch | 3.75 |
| Base to Center Height MM | 95.25 |
| Bearing Insert Part Number | 1217 K |
