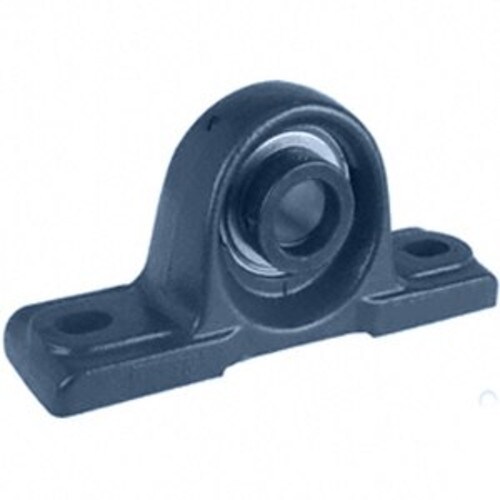

RSAO2 3/16 - TIMKEN
- Bore / Inner Diameter Inch: 2.188
- Bore / Inner Diameter MM: 55.575
- Number of Mounting Holes: 2
- Bolt Center to Center Inch: 10.2
- Bolt Center to Center MM: 260.5
- Bearing Locking Style: Eccentric Collar
SPECIFICATIONS
| Bore / Inner Diameter Inch | 2.188 |
|---|---|
| Bore / Inner Diameter MM | 55.575 |
| Number of Mounting Holes | 2 |
| Bolt Center to Center Inch | 10.2 |
| Bolt Center to Center MM | 260.5 |
| Bearing Locking Style | Eccentric Collar |
| Rolling Element | Ball Bearing |
| Housing Material | Cast Iron |
| Housing Style | 2 Bolt Pillow Block |
| Expansion / Non-Expansion | Non-expansion |
| Base to Center Height Inch | 3.75 |
| Base to Center Height MM | 95.25 |
| Bearing Insert Part Number | GN203KRRB |
