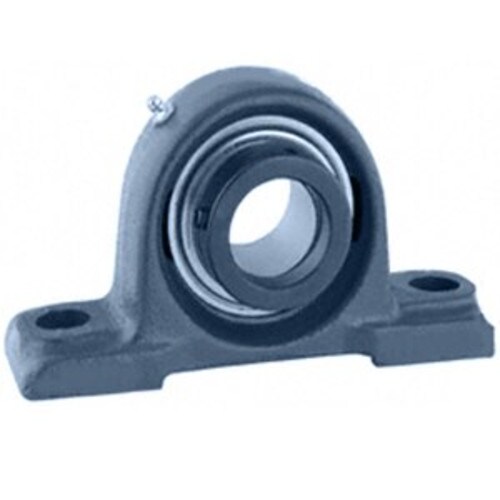

RSA1 - FAFNIR
- Bore / Inner Diameter Inch: 1
- Bore / Inner Diameter MM: 25.4
- Number of Mounting Holes: 2
- Bolt Center to Center Inch: 5.5
- Bolt Center to Center MM: 140
- Bearing Locking Style: Eccentric Collar
SPECIFICATIONS
Bore / Inner Diameter Inch | 1 |
---|---|
Bore / Inner Diameter MM | 25.4 |
Number of Mounting Holes | 2 |
Bolt Center to Center Inch | 5.5 |
Bolt Center to Center MM | 140 |
Bearing Locking Style | Eccentric Collar |
Rolling Element | Ball Bearing |
Housing Material | Cast Iron |
Housing Style | 2 Bolt Pillow Block |
Expansion / Non-Expansion | Non-expansion |
Base to Center Height Inch | 2 |
Base to Center Height MM | 50.8 |
Bearing Insert Part Number | G1100KRRB |
