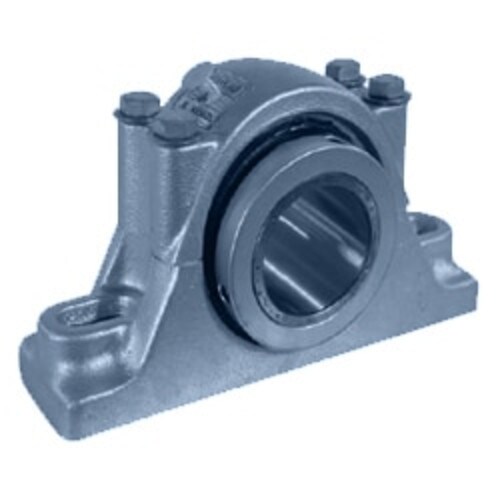

RPB 203-2 - SEALMASTER
- Bore / Inner Diameter Inch: 2.188
- Bore / Inner Diameter MM: 55.575
- Number of Mounting Holes: 2
- Bolt Center to Center Inch: 7.2
- Bolt Center to Center MM: 182.9
- Max Nom Bolt Ctr to Ctr Inch: 7.94
- Max Nom Bolt Ctr to Ctr MM: 201.676
- Bearing Locking Style: Concentric Collar
SPECIFICATIONS
| Bore / Inner Diameter Inch | 2.188 |
|---|---|
| Bore / Inner Diameter MM | 55.575 |
| Number of Mounting Holes | 2 |
| Bolt Center to Center Inch | 7.2 |
| Bolt Center to Center MM | 182.9 |
| Max Nom Bolt Ctr to Ctr Inch | 7.94 |
| Max Nom Bolt Ctr to Ctr MM | 201.676 |
| Bearing Locking Style | Concentric Collar |
| Rolling Element | Tapered Roller Bearing |
| Housing Material | Cast Iron |
| Housing Style | 2 Bolt Pillow Block |
| Min Nom Bolt Ctr to Ctr Inch | 6.69 |
| Min Nom Bolt Ctr to Ctr MM | 169.926 |
| Base to Center Height Inch | 2.5 |
| Base to Center Height MM | 63.5 |
| Bearing Insert Part Number | RCI-203 |
