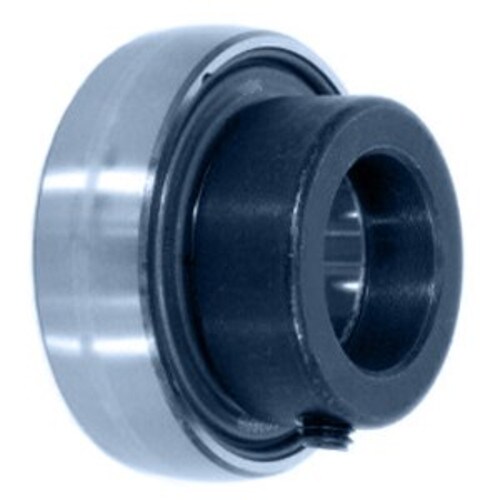

RA104RRB - FAFNIR
- Outside Diameter Inch: 2.835
- Outside Diameter MM: 72.009
- Outer Race Width Inch: 0.748
- Outer Race Width MM: 18.999
- Seal Type: Double Land Riding Rubber Contact
- Snap Ring: No
SPECIFICATIONS
Outside Diameter Inch | 2.835 |
---|---|
Outside Diameter MM | 72.009 |
Outer Race Width Inch | 0.748 |
Outer Race Width MM | 18.999 |
Seal Type | Double Land Riding Rubber Contact |
Snap Ring | No |
Bearing Locking Style | Eccentric Collar |
Length Across Bore Inch | 1.531 |
Length Across Bore MM | 38.887 |
Relubricatable | No |
Rolling Element | Ball Bearing |
Inner Race Profile | Narrow Inner Ring |
Bearing Profile | Spherical |
