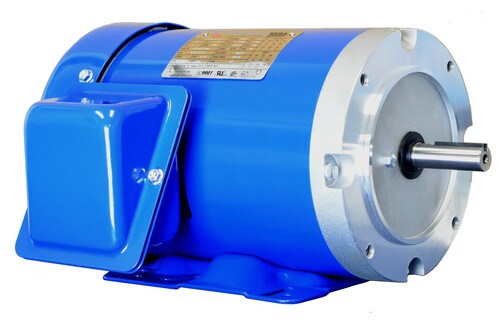

PR56CH3M2A-575V - NORTH AMERICAN

Call For Pricing
Call for Pricing

Shipping & Returns

SPECIFICATIONS

This product has superseded PR56CH3M2D

  • HP: 3
  • Phase: Three
  • Full Load RPM: 3490
  • Enclosure: TEFC

NEMA DESIGN B

  • Maximum 5% Slip
  • High To Medium Starting Current
  • Normal Locked Rotor Torque
  • Normal Breakdown Torque
  • Suited For A Broad Variety Of Applications - Like Fans And Pumps

Specifications Sheet

Resources

MaterialRolled Steel
Full Load RPM3600.0
RPM3600.0
Frame56CH
Full Load Amps at Rated Voltage56.0
Frequency Hz60.0
Voltage575 VAC
Full Load Efficiency Percentage87.5
Service Factor1.15
Insulation ClassF
NEMA DesignB
NEMA CodeL
Locked Rotor Amps at Rated Voltage28.2
Power Factor0.82
Drive End Bottom Bearing6203-2RZC3
Opposite Drive End Upper Bearing6313
Drive End Upper Bearing6313
Opposite Drive End Bottom Bearing6313
Inverter Rated or DutyInverter Rated
PhaseThree Phase
Model NumberPR56CH3M2A-575V
Weight (lbs)42.0
HP Range3.0
HP3.0
GTIN192999058855
Enclosure Height Inch18.1
Enclosure Height MM459.74
Enclosure Length Inch29.3
Enclosure Length MM744.22
Motor Enclosure TypeTotally Enclosed|TEFC
RPM Range3600.0
