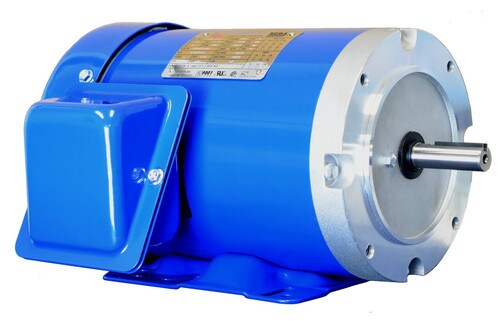

PR56C1M4A - NORTH AMERICAN
- HP: 1
- Phase: Three
- Full Load RPM: 1750
- Enclosure: TEFC
NEMA DESIGN B
- Maximum 5% Slip
- High To Medium Starting Current
- Normal Locked Rotor Torque
- Normal Breakdown Torque
- Suited For A Broad Variety Of Applications - Like Fans And Pumps
SPECIFICATIONS
| Material | Rolled Steel |
|---|---|
| Full Load RPM | 1800.0 |
| RPM | 1800.0 |
| Frame | 56C |
| Full Load Amps at Rated Voltage | 87.0 |
| Frequency Hz | 60.0 |
| Voltage | 208/230/460 VAC|208 VAC|230 VAC|460 VAC|230/460 VAC |
| Full Load Efficiency Percentage | 95.4 |
| Service Factor | 1.15 |
| Insulation Class | F |
| NEMA Design | B |
| NEMA Code | N |
| Locked Rotor Amps at Rated Voltage | 10.4 |
| Power Factor | 0.76 |
| Drive End Bottom Bearing | 6203-2RZC3 |
| Opposite Drive End Upper Bearing | 6313 |
| Drive End Upper Bearing | 6313 |
| Opposite Drive End Bottom Bearing | 6313 |
| Inverter Rated or Duty | Inverter Rated |
| Phase | Three Phase |
| Model Number | PR56C1M4A |
| Weight (lbs) | 33.0 |
| HP Range | 1.0 |
| HP | 1.0 |
| GTIN | 192999024478 |
| Enclosure Height Inch | 18.5 |
| Enclosure Height MM | 469.9 |
| Enclosure Length Inch | 36.0 |
| Enclosure Length MM | 914.4 |
| Motor Enclosure Type | Totally Enclosed|TEFC |
| RPM Range | 1800.0 |
