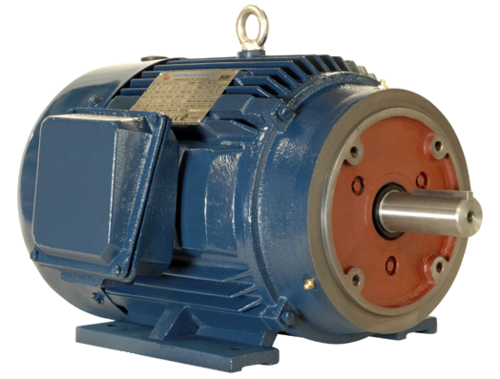

PE324TC-40-4C - NORTH AMERICAN
- HP: 40
- Phase: Three
- Full Load RPM: 1780
- Enclosure: TEFC
NEMA DESIGN C
- Maximum 5% Slip
- Low Starting Current
- High Locked Rotor Torque
- Normal Breakdown Torque
- Suited For Equipment With High Inertia And High Starting Torques At Start - Like Positive Displacement Pumps, Conveyors
SPECIFICATIONS
| Material | Cast Iron |
|---|---|
| Full Load RPM | 1800.0 |
| RPM | 1800.0 |
| Frame | 324TC |
| Full Load Amps at Rated Voltage | 124.0 |
| Frequency Hz | 60.0 |
| Voltage | 208/230/460 VAC|208 VAC|230 VAC|460 VAC|230/460 VAC |
| Full Load Efficiency Percentage | 90.2 |
| Service Factor | 1.15 |
| Insulation Class | F |
| NEMA Design | C |
| NEMA Code | G |
| Locked Rotor Amps at Rated Voltage | 290.0 |
| Power Factor | 0.85 |
| Drive End Bottom Bearing | 6312 |
| Opposite Drive End Upper Bearing | 6318 |
| Drive End Upper Bearing | NU319 |
| Opposite Drive End Bottom Bearing | 6318 |
| Inverter Rated or Duty | Inverter Duty |
| Phase | Three Phase |
| Model Number | PE324TC-40-4C |
| Weight (lbs) | 513.0 |
| Application | Crusher Duty |
| HP Range | 40.0 |
| HP | 40.0 |
| GTIN | 192999006665 |
| Enclosure Height Inch | 22.6 |
| Enclosure Height MM | 574.04 |
| Enclosure Length Inch | 39.5 |
| Enclosure Length MM | 1003.3 |
| Motor Enclosure Type | Totally Enclosed|TEFC |
| RPM Range | 1800.0 |
