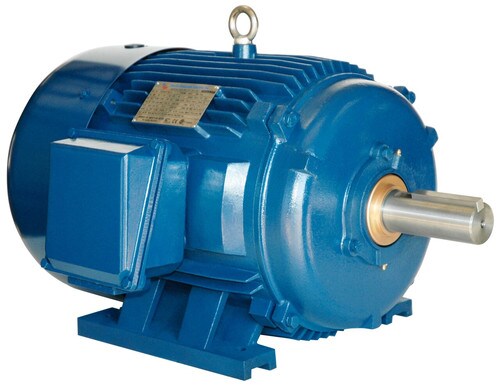

PE184T-5-2-575V - NORTH AMERICAN
- HP: 5
- Phase: Three
- Full Load RPM: 3515
- Enclosure: TEFC
NEMA DESIGN B
- Maximum 5% Slip
- High To Medium Starting Current
- Normal Locked Rotor Torque
- Normal Breakdown Torque
- Suited For A Broad Variety Of Applications - Like Fans And Pumps
SPECIFICATIONS
| Material | Cast Iron |
|---|---|
| Full Load RPM | 3600.0 |
| RPM | 3600.0 |
| Frame | 184T |
| Full Load Amps at Rated Voltage | 76.0 |
| Frequency Hz | 60.0 |
| Voltage | 575 VAC |
| Full Load Efficiency Percentage | 88.5 |
| Service Factor | 1.15 |
| Insulation Class | F |
| NEMA Design | B |
| NEMA Code | J |
| Locked Rotor Amps at Rated Voltage | 37.0 |
| Power Factor | 0.9 |
| Drive End Bottom Bearing | 6306-ZZ |
| Opposite Drive End Upper Bearing | 6314 |
| Drive End Upper Bearing | NU318 |
| Opposite Drive End Bottom Bearing | 6314 |
| Inverter Rated or Duty | Inverter Duty |
| Phase | Three Phase |
| Model Number | PE184T-5-2-575V |
| Weight (lbs) | 102.0 |
| Application | Heavy Duty |
| HP Range | 5.0 |
| HP | 5.0 |
| GTIN | 192999047484 |
| Enclosure Height Inch | 21.0 |
| Enclosure Height MM | 533.4 |
| Enclosure Length Inch | 33.3 |
| Enclosure Length MM | 845.82 |
| Motor Enclosure Type | Totally Enclosed|TEFC |
| RPM Range | 3600.0 |
