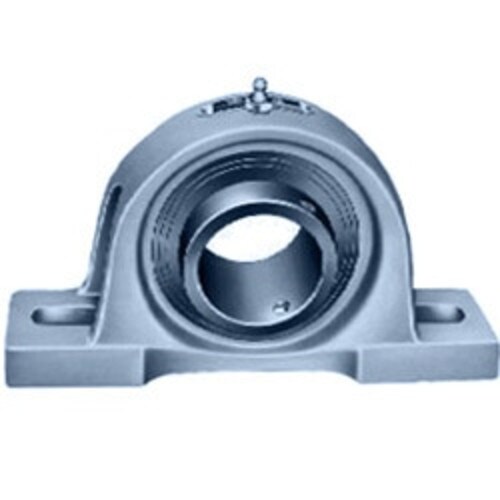

NP-20 - SEALMASTER
- Bore / Inner Diameter Inch: 1.25
- Bore / Inner Diameter MM: 31.75
- Number of Mounting Holes: 2
- Bolt Center to Center Inch: 5
- Bolt Center to Center MM: 127
- Max Nom Bolt Ctr to Ctr Inch: 5.313
- Max Nom Bolt Ctr to Ctr MM: 134.95
- Bearing Locking Style: Set Screw
SPECIFICATIONS
| Bore / Inner Diameter Inch | 1.25 |
|---|---|
| Bore / Inner Diameter MM | 31.75 |
| Number of Mounting Holes | 2 |
| Bolt Center to Center Inch | 5 |
| Bolt Center to Center MM | 127 |
| Max Nom Bolt Ctr to Ctr Inch | 5.313 |
| Max Nom Bolt Ctr to Ctr MM | 134.95 |
| Bearing Locking Style | Set Screw |
| Rolling Element | Ball Bearing |
| Housing Material | Cast Iron |
| Housing Style | 2 Bolt Pillow Block |
| Min Nom Bolt Ctr to Ctr Inch | 4.688 |
| Min Nom Bolt Ctr to Ctr MM | 119.075 |
| Base to Center Height Inch | 1.875 |
| Base to Center Height MM | 47.63 |
| Bearing Insert Part Number | 2-14 |
