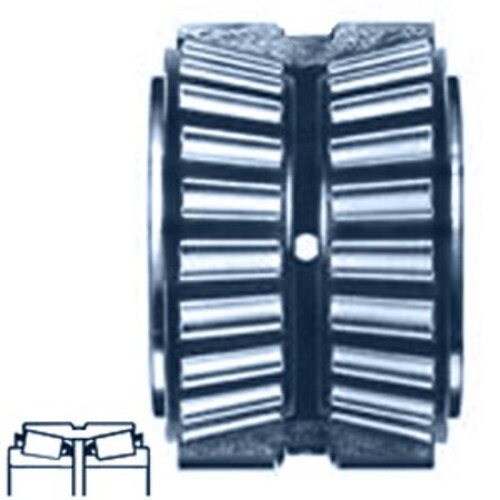

JRM4249-90UA1 - TIMKEN
- Bore / Inner Diameter Inch: 1.654
- Bore / Inner Diameter MM: 42
- Outside Diameter Inch: 2.992
- Outside Diameter MM: 76
SPECIFICATIONS
| Bore / Inner Diameter Inch | 1.654 |
|---|---|
| Bore / Inner Diameter MM | 42 |
| Outside Diameter Inch | 2.992 |
| Outside Diameter MM | 76 |
| Number of Tapered Rows | Double Row |
| Precision Class | Standard |
| Assembly Components | JRM4249, JRM4210XD, GR20, JRM4200-S |
| Assembly Number | 90UA1 |
| Assembly Width Inch | 1.535 |
| Assembly Width MM | 39 |
| End Play | 0.0045 |
| Flange Outside Diameter Inch | 1.535 |
| Flange Outside Diameter MM | 39 |
