JM515610-2 - TIMKEN

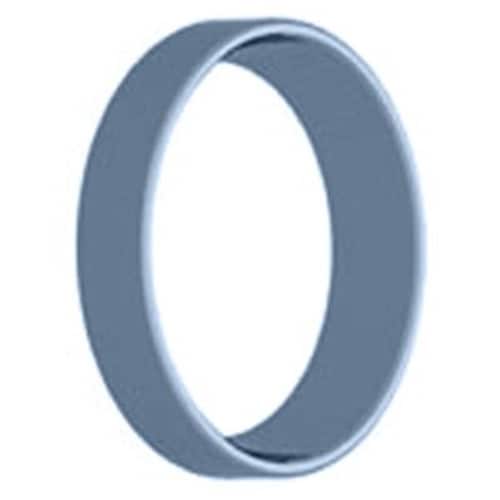

- JM515610-2 - TIMKEN Tapered Roller Bearing Cups
- The most basic and most widely used type of tapered roller bearing, TIMKEN TS bearings consist of two main separable parts: the cone or inner ring and the cup or outer ring. The components are typically mounted in opposing pairs on a shaft.
SPECIFICATIONS
| Cup Width Inch | 1.122 |
|---|---|
| Cup Width MM | 28.5 |
| Outside Diameter Inch | 5.1181 |
| Outside Diameter MM | 130.000 |
| In Or Metric | Metric |
| Model Number | JM515610 |
| Series | M515600M515600 Single Cups Metric |
| Rating | Standard |
| Weight (lbs) | 1.34 |
