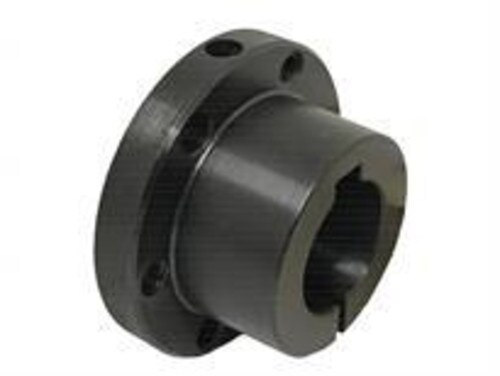

JAX20MM - B & B MANUFACTURING
- Bushing Style: JA
- Bore Type: Finished Bore
- Bore / Inner Diameter Inch: 0.787
- Minimum Bore Inch: 0.500
SPECIFICATIONS
| Bushing Style | JA |
|---|---|
| Bore Type | Finished Bore |
| Bore / Inner Diameter Inch | 0.787 |
| Minimum Bore Inch | 0.500 |
| Maximum Bore Inch | 1.250 |
| Bore / Inner Diameter MM | 20 |
| Thread Size | 10-24 x 1 |
| A Dim Inch | 0.313 |
| B Dim Inch | 1.375 |
| D Dim Inch | 2 |
| E Dim Inch | 0.688 |
| F Dim Inch | 0.588 |
| I Dim Inch | 1 |
| Torque Capacity Lb/Inch | 1750 |
| Bolt Circle Inch | 1.66 |
| Material | Steel |
| Finish | Black Oxide |
