H715341-2 - TIMKEN

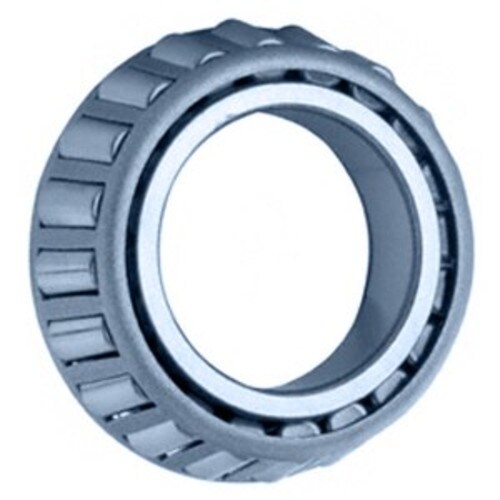

- H715341-2 - TIMKEN Tapered Roller Bearing Cones
- The most basic and most widely used type of tapered roller bearing, TIMKEN TS bearings consist of two main separable parts: the cone or inner ring and the cup or outer ring. The components are typically mounted in opposing pairs on a shaft.
SPECIFICATIONS
| Bore / Inner Diameter Inch | 2.6250 |
|---|---|
| Bore / Inner Diameter MM | 66.675 |
| Cone Width Inch | 1.8125 |
| Cone Width MM | 46.038 |
| Model Number | H715341 |
| Series | H715300 Single Cone Imperial Single Cone Imperial |
| In Or Metric | Imperial |
| Dynamic Load Capacity N | 319000 |
| Dynamic Load Capacity lbf | 71700 |
| Static Load Capacity N | 405000 |
| Static Load Capacity lbf | 91000 |
| Rating | Standard |
| Weight (lbs) | 5.232 |
