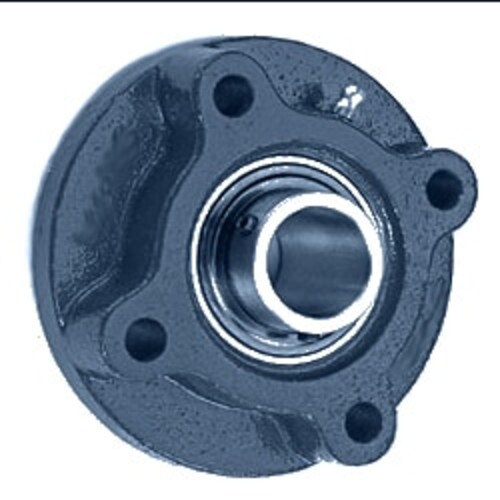

FYC 35 TF - SKF
- Bore / Inner Diameter Inch: 1.378
- Bore / Inner Diameter MM: 35
- Number of Mounting Holes: 4
- Bolt Center to Center Inch: 3.063
- Bolt Center to Center MM: 77.8
- Nom Bolt Circle Dia Round Inch: 4.3
- Nom Bolt Circle Dia Round MM: 110
- Bearing Locking Style: Set Screw
SPECIFICATIONS
| Bore / Inner Diameter Inch | 1.378 |
|---|---|
| Bore / Inner Diameter MM | 35 |
| Number of Mounting Holes | 4 |
| Bolt Center to Center Inch | 3.063 |
| Bolt Center to Center MM | 77.8 |
| Nom Bolt Circle Dia Round Inch | 4.3 |
| Nom Bolt Circle Dia Round MM | 110 |
| Bearing Locking Style | Set Screw |
| Rolling Element | Ball Bearing |
| Housing Material | Cast Iron |
| Housing Style | 4 Bolt Round Flange Cartridge |
| Expansion / Non-Expansion | Non-expansion |
| Length Across Bore Inch | 1.689 |
| Length Across Bore MM | 42.9 |
| Cartridge Pilot Depth Inch | 0.315 |
| Cartridge Pilot Depth MM | 8 |
| Cartridge Pilot Diameter Inch | 3.543 |
| Cartridge Pilot Diameter MM | 90 |
