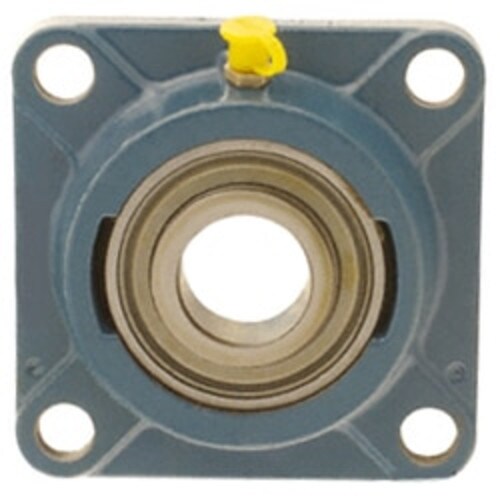

FY 1-3/8 TF - SKF
- Bore / Inner Diameter Inch: 1.375
- Bore / Inner Diameter MM: 34.925
- Number of Mounting Holes: 4
- Bolt Center to Center Inch: 3.625
- Bolt Center to Center MM: 92.08
- Nom Bolt Circle Dia Round Inch: 5.1
- Nom Bolt Circle Dia Round MM: 130
- Bearing Locking Style: Set Screw
SPECIFICATIONS
| Bore / Inner Diameter Inch | 1.375 |
|---|---|
| Bore / Inner Diameter MM | 34.925 |
| Number of Mounting Holes | 4 |
| Bolt Center to Center Inch | 3.625 |
| Bolt Center to Center MM | 92.08 |
| Nom Bolt Circle Dia Round Inch | 5.1 |
| Nom Bolt Circle Dia Round MM | 130 |
| Bearing Locking Style | Set Screw |
| Rolling Element | Ball Bearing |
| Housing Material | Cast Iron |
| Housing Style | 4 Bolt Square Flange Block |
| Expansion / Non-Expansion | Non-expansion |
| Length Across Bore Inch | 1.688 |
| Length Across Bore MM | 42.87 |
