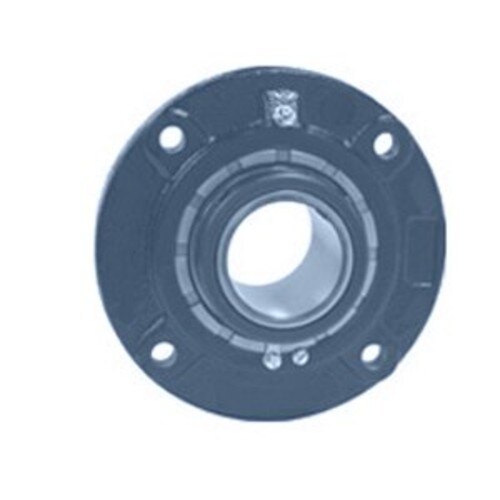

FCB22448H - REXNORD
- Bore / Inner Diameter Inch: 3
- Bore / Inner Diameter MM: 76.2
- Number of Mounting Holes: 4
- Bolt Center to Center Inch: 5.297
- Bolt Center to Center MM: 134.544
- Nom Bolt Circle Dia Round Inch: 7.5
- Nom Bolt Circle Dia Round MM: 190
- Bearing Locking Style: Concentric Collar
SPECIFICATIONS
| Bore / Inner Diameter Inch | 3 |
|---|---|
| Bore / Inner Diameter MM | 76.2 |
| Number of Mounting Holes | 4 |
| Bolt Center to Center Inch | 5.297 |
| Bolt Center to Center MM | 134.544 |
| Nom Bolt Circle Dia Round Inch | 7.5 |
| Nom Bolt Circle Dia Round MM | 190 |
| Bearing Locking Style | Concentric Collar |
| Rolling Element | Spherical Roller Bearing |
| Housing Material | Cast Iron |
| Housing Style | 4 Bolt Round Flange Cartridge |
| Expansion / Non-Expansion | Non-expansion |
| Bearing Insert Part Number | B22448HL |
| Length Across Bore Inch | 4 |
| Length Across Bore MM | 101.6 |
| Cartridge Pilot Diameter Inch | 6.375 |
| Cartridge Pilot Diameter MM | 161.92 |
| Mounting Bolts Inch | 5/8 |
