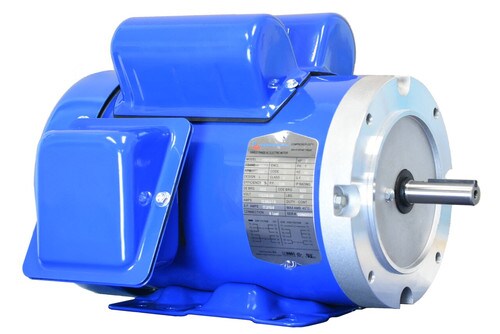

F56C1/2S4C - NORTH AMERICAN
- HP: 0.5
- Phase: Single
- Full Load RPM: 1765
- Enclosure: TEFC
SPECIFICATIONS
| Material | Rolled Steel |
|---|---|
| Full Load RPM | 1800.0 |
| RPM | 1800.0 |
| Frame | 56C |
| Full Load Amps at Rated Voltage | 3.9 |
| Frequency Hz | 60.0 |
| Voltage | 115/208/230 VAC|115 VAC|208 VAC|230 VAC |
| Full Load Efficiency Percentage | 89.5 |
| Service Factor | 1.15 |
| Insulation Class | F |
| NEMA Design | L |
| NEMA Code | M |
| Locked Rotor Amps at Rated Voltage | 21.1 |
| Power Factor | 0.8 |
| Drive End Bottom Bearing | 6203-2RZC3 |
| Opposite Drive End Upper Bearing | 6306-ZZ |
| Drive End Upper Bearing | 6306-ZZ |
| Opposite Drive End Bottom Bearing | 6306-ZZ |
| Phase | Single Phase |
| Model Number | F56C1/2S4C |
| Weight (lbs) | 28.0 |
| HP Range | 0.5 |
| HP | 0.5 |
| GTIN | 192999000670 |
| Enclosure Height Inch | 9.1 |
| Enclosure Height MM | 231.14 |
| Enclosure Length Inch | 16.1 |
| Enclosure Length MM | 408.94 |
| Motor Enclosure Type | Totally Enclosed|TEFC |
| RPM Range | 1800.0 |
