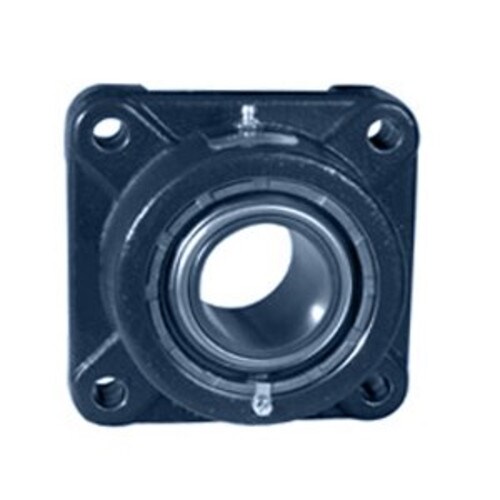

EFRB22440HK81 - LINK-BELT
- Number of Mounting Holes: 4
- Bolt Center to Center Inch: 5.375
- Bolt Center to Center MM: 136.525
- Nom Bolt Circle Dia Round Inch: 7.6
- Nom Bolt Circle Dia Round MM: 193
- Bearing Locking Style: Concentric Collar
SPECIFICATIONS
| Number of Mounting Holes | 4 |
|---|---|
| Bolt Center to Center Inch | 5.375 |
| Bolt Center to Center MM | 136.525 |
| Nom Bolt Circle Dia Round Inch | 7.6 |
| Nom Bolt Circle Dia Round MM | 193 |
| Bearing Locking Style | Concentric Collar |
| Rolling Element | Spherical Roller Bearing |
| Housing Material | Cast Iron |
| Housing Style | 4 Bolt Square Flange Block |
| Expansion / Non-Expansion | Non-expansion |
| Bearing Insert Part Number | B22440HL |
| Length Across Bore Inch | 3.5 |
| Length Across Bore MM | 88.9 |
| Mounting Bolts Inch | 5/8 |
| Note | Link Belt is Owned by Rexnord |
