BX44 - D&D GLOBAL
The BX44 double-sided belt by D&D Global, used to transmit power on two sides, has special tension cords that meet dual power and multiple bend requirements. There is a minimum of stretch that delivers maximum strength. Applications include drives for conveyors, agitators, mule drives, crushers, mixers, and lawn and garden equipment. The benefits of the BX44 double-sided belt are static conductivity, high strength tensile members, and the classical profile. An engineered synthetic compound made of highly reinforced fiber makes up the lower compression section.
It is cool running, flexible, and wear-resistant. The rubber that surrounds the tensile member is also a compounded and reinforced fiber for excellent adhesion to the cords of the tensile member. The top fabric is a synthetic-natural fiber blend specially woven for the belt. The notches allow superior flexibility on small and large diameter pulleys.
|Intended Pulley Angle||0.43|

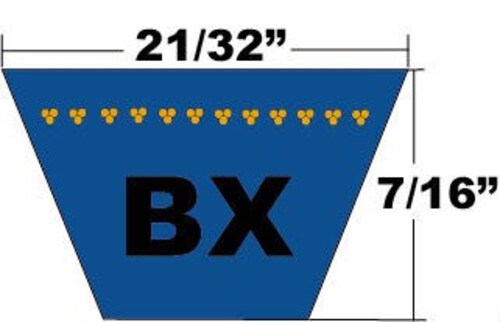

|Belt Width Inch||0.738|
|Upper Width Per Section Inch||0.625|
|Outside Belt Diameter Inch||47.0|
|Outside Belt Diameter MM||1193.8|
|Belt Thickness / Sidewall Depth Inch||0.438|
|Belt Thickness / Sidewall Depth MM||11.11|
