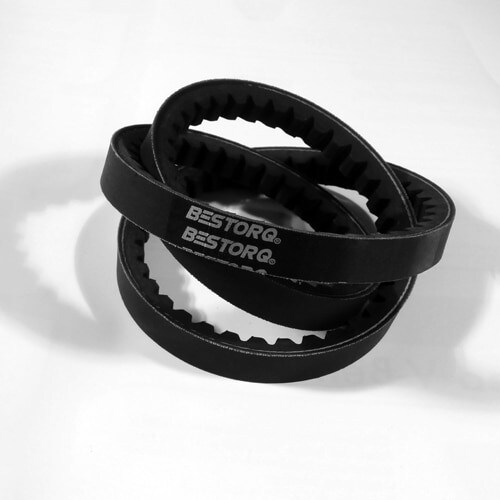

BX44 - BESTORQ
The Bestorq-V-Belt-BX44 is a light-duty classically designed V-belt. It is constructed with a 40-degree angle to wedge the classical V-belt inside the channel of the pulley and sheave. The classical V-belt is the most tested belt on the global market. The wedging action on the Bestorq-V-Belt-BX44 is fabricated to handle heavy pulling action with great tension. The rubber body contains an outer fabric cover with tensile polyester cords. It has a rubber shell that is oil and grease-resistant, and it is able to endure intense abrasion.
The rigid classical V-belt engineering feat combines the action of the rubber compound with thick polyester cords to maintain strength and durability. The rubber components are able to withstand heated temperatures from -1 degrees to 158 degrees Fahrenheit. The conventional V-belt is applicable for all industries such as agriculture, facility maintenance, and material handling. It is ISO:9001 certified. The Bestorq-V-Belt-BX44 exceeds the recommendations for RMA quality standards.
SPECIFICATIONS
Belt Width Inch | 0.66 |
---|---|
Belt Width MM | 16.8 |
Outside Belt Diameter Inch | 46.90 |
Outside Belt Diameter MM | 1191.3 |
Belt Thickness / Sidewall Depth Inch | 0.43 |
Belt Thickness / Sidewall Depth MM | 10.9 |
GTIN | 840593106242 |
Model Number | BX44 |
