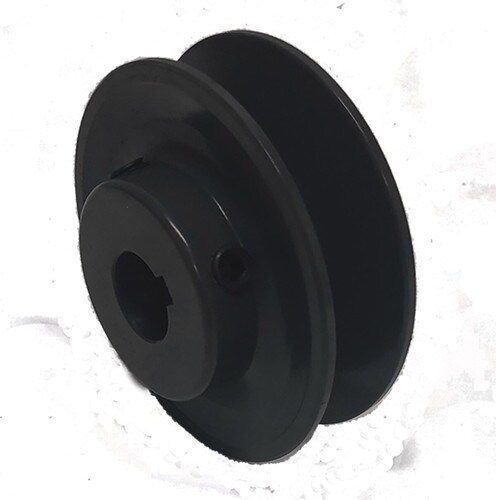

BK62X1 - B & B MANUFACTURING
- Type: 3
- Bore Type: Finished Bore
- Outer Diameter Inch: 5.95
- Bore / Inner Diameter Inch: 1
SPECIFICATIONS
| Type | 3 |
|---|---|
| Bore Type | Finished Bore |
| Outer Diameter Inch | 5.95 |
| Bore / Inner Diameter Inch | 1 |
| Minimum Bore Inch | 0.500 |
| Maximum Bore Inch | 1.1875 |
| Face Width Inch | 0.875 |
| Overall Length Inch | 1.281 |
| Hub Diameter Inch | 1.875 |
| Outer Diameter MM | 151.13 |
| Bore / Inner Diameter MM | 25.4 |
| Face Width MM | 22.225 |
| Overall Length MM | 32.544 |
| Hub Diameter MM | 47.625 |
| Thread Size | 1 x 5/16-18 UNC |
| Material | Cast Iron |
