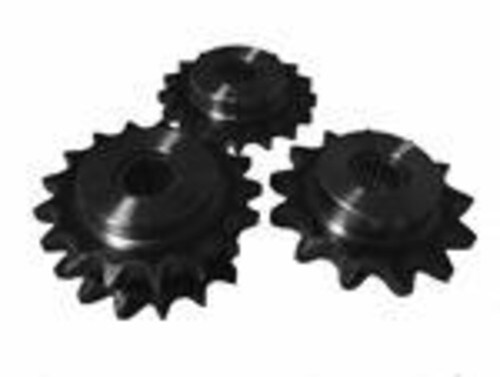

80A12-IDLER - B & B MANUFACTURING
- Teeth: 12
- Tooth Style: 80
- Type: A
- Bore Type: Idler
SPECIFICATIONS
| Teeth | 12 |
|---|---|
| Tooth Style | 80 |
| Type | A |
| Bore Type | Idler |
| Pitch Diameter Inch | 3.864 |
| Outer Diameter Inch | 4.332 |
| Bore / Inner Diameter Inch | 0.75 |
| Overall Length Inch | 0.61 |
| Pitch Diameter MM | 98.146 |
| Outer Diameter MM | 110.033 |
| Bore / Inner Diameter MM | 19.05 |
| Overall Length MM | 15.494 |
| Material | Steel |
| Finish | Black Oxide |
