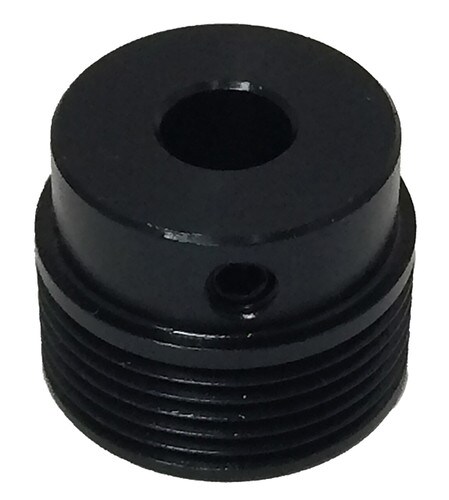

6J180X5/8 - B & B MANUFACTURING
- Bore Type: Finished Bore
- Pitch Diameter Inch: 1.83
- Outer Diameter Inch: 1.8
- Bore / Inner Diameter Inch: 0.625
SPECIFICATIONS
| Bore Type | Finished Bore |
|---|---|
| Pitch Diameter Inch | 1.83 |
| Outer Diameter Inch | 1.8 |
| Bore / Inner Diameter Inch | 0.625 |
| Minimum Bore Inch | 0.500 |
| Maximum Bore Inch | 0.750 |
| Overall Length Inch | 1.188 |
| Pitch Diameter MM | 46.482 |
| Outer Diameter MM | 45.72 |
| Bore / Inner Diameter MM | 15.875 |
| Overall Length MM | 30.175 |
| Thread Size | 1 x 5/16-18 |
| Material | Steel |
| Finish | Black Oxide |
