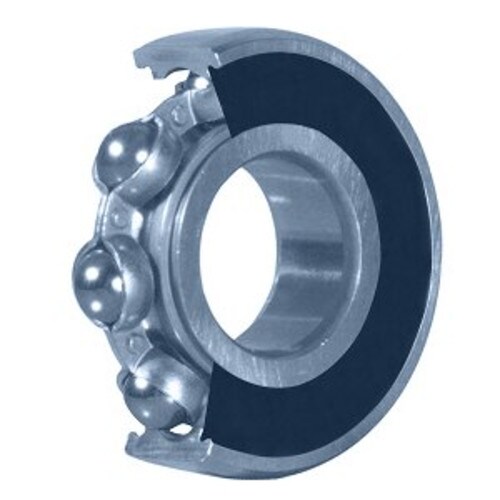

6204LB - NTN
- Bore / Inner Diameter Inch: 0.787
- Bore / Inner Diameter MM: 20
- Enclosure Type: Non-Contact Seal
- Seal Type: 1 Seal
SPECIFICATIONS
| Bore / Inner Diameter Inch | 0.787 |
|---|---|
| Bore / Inner Diameter MM | 20 |
| Enclosure Type | Non-Contact Seal |
| Seal Type | 1 Seal |
| Snap Ring | No |
| Rolling Element | Ball Bearing |
| Precision Class | ABEC 1 |
| Cage Material | Steel |
| Internal Fit / Preload | C3 |
| Snap Ring Groove | No |
| Outer Race Width Inch | 0.551 |
| Outer Race Width MM | 14 |
