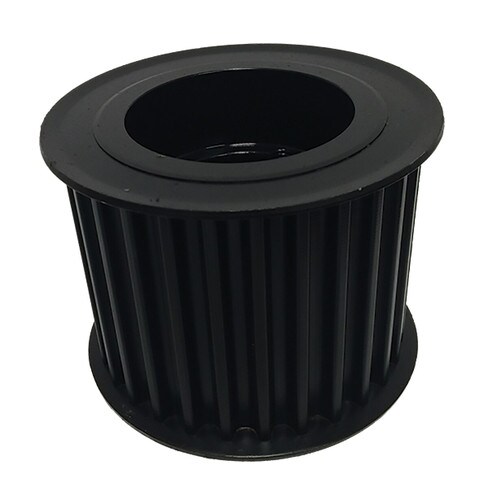

32-14P85-2517 - B & B MANUFACTURING
- Teeth: 32
- Tooth Style: GT 14mm
- Type: A1F
- Bushing Style: 2517
SPECIFICATIONS
| Teeth | 32 |
|---|---|
| Tooth Style | GT 14mm |
| Type | A1F |
| Bushing Style | 2517 |
| Bore Type | TL |
| Pitch Diameter Inch | 5.614 |
| Outer Diameter Inch | 5.504 |
| Flange Diameter Inch | 6.124 |
| Minimum Bore Inch | 0.500 |
| Maximum Bore Inch | 2.6875 |
| Face Width Inch | 4 |
| Overall Length Inch | 4 |
| Pulley Belt Width Inch | 3.68 |
| Pitch Diameter MM | 142.596 |
| Outer Diameter MM | 139.802 |
| Flange Diameter MM | 155.55 |
| Face Width MM | 101.6 |
| Overall Length MM | 101.6 |
| Pulley Belt Width MM | 93.472 |
| Material | Cast Iron |
| Finish | Black Oxide |
| Flange Material | Steel |
