31594-2 - TIMKEN

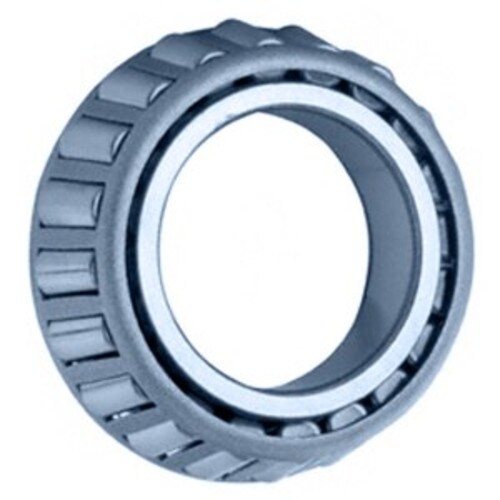

- 31594-2 - TIMKEN Tapered Roller Bearing Cones
- The most basic and most widely used type of tapered roller bearing, TIMKEN TS bearings consist of two main separable parts: the cone or inner ring and the cup or outer ring. The components are typically mounted in opposing pairs on a shaft.
SPECIFICATIONS
Bore / Inner Diameter Inch | 1 3/8 |
---|---|
Bore / Inner Diameter MM | 34.925 |
Cone Width Inch | 1.1250 |
Cone Width MM | 28.575 |
Model Number | 31594 |
Series | 31500 Single Cone Imperial Single Cone Imperial |
In Or Metric | Imperial |
Dynamic Load Capacity N | 94700 |
Dynamic Load Capacity lbf | 21300 |
Static Load Capacity N | 107000 |
Static Load Capacity lbf | 24100 |
Rating | Class 2 |
Inner Ring Width Inch | 1.125 |
Inner Ring Width MM | 28.6 |
Weight (lbs) | .95 |
