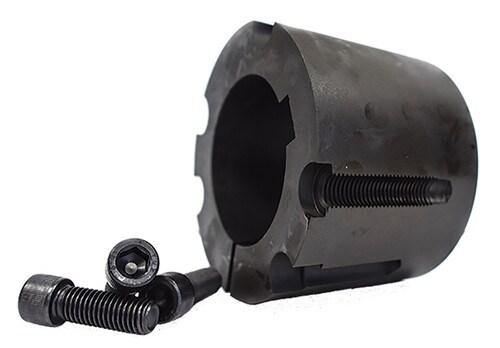

3030X2-7/16 - B & B MANUFACTURING
- Bushing Style: 3030
- Bore Type: Finished Bore
- Bore / Inner Diameter Inch: 2.4375
- Minimum Bore Inch: 0.9375
SPECIFICATIONS
| Bushing Style | 3030 |
|---|---|
| Bore Type | Finished Bore |
| Bore / Inner Diameter Inch | 2.4375 |
| Minimum Bore Inch | 0.9375 |
| Maximum Bore Inch | 3.250 |
| Bore / Inner Diameter MM | 61.913 |
| Thread Size | 5/8 x 1-1/4 |
| A Dim Inch | 4.25 |
| B Dim Inch | 3 |
| C Dim Inch | 5.75 |
| D Dim Inch | 4 |
| Torque Capacity Lb/Inch | 24000 |
| Bolt Circle Inch | 4 |
| Material | Steel |
| Finish | Black Oxide |
