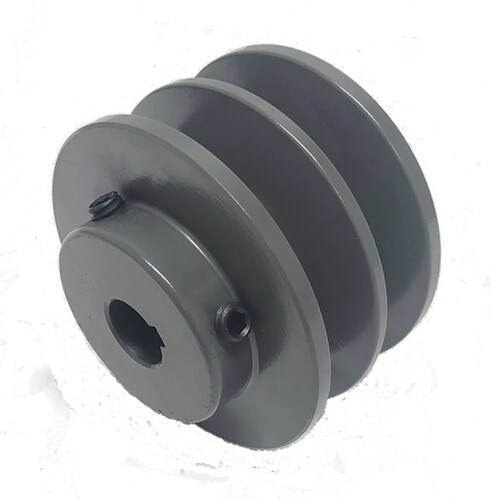

2BK47X1-3/8 - B & B MANUFACTURING
- Type: 2
- Bore Type: Finished Bore
- Outer Diameter Inch: 4.45
- Bore / Inner Diameter Inch: 1.375
SPECIFICATIONS
| Type | 2 |
|---|---|
| Bore Type | Finished Bore |
| Outer Diameter Inch | 4.45 |
| Bore / Inner Diameter Inch | 1.375 |
| Minimum Bore Inch | 0.875 |
| Maximum Bore Inch | 1.375 |
| Face Width Inch | 1.75 |
| Overall Length Inch | 2.219 |
| Hub Diameter Inch | 2.375 |
| Outer Diameter MM | 113.03 |
| Bore / Inner Diameter MM | 34.925 |
| Face Width MM | 44.45 |
| Overall Length MM | 56.356 |
| Hub Diameter MM | 60.325 |
| Thread Size | 1 x 5/16-18 UNC |
| Material | Cast Iron |
