29685-2 - TIMKEN

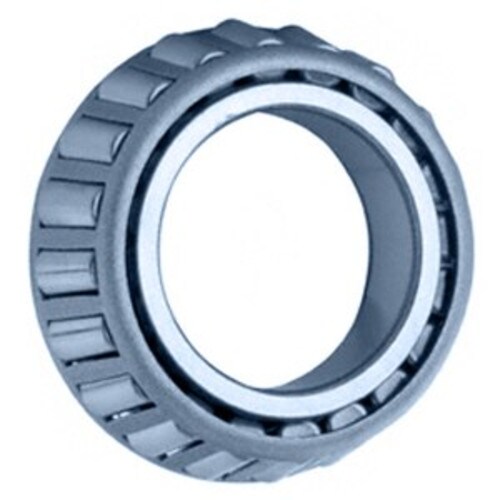

- 29685-2 - TIMKEN Tapered Roller Bearing Cones
- The most basic and most widely used type of tapered roller bearing, TIMKEN TS bearings consist of two main separable parts: the cone or inner ring and the cup or outer ring. The components are typically mounted in opposing pairs on a shaft.
SPECIFICATIONS
| Bore / Inner Diameter Inch | 2.8750 |
|---|---|
| Bore / Inner Diameter MM | 73.025 |
| Cone Width Inch | 1.0000 |
| Cone Width MM | 25.400 |
| Model Number | 29685 |
| Series | 29600 Single Cone Imperial Single Cone Imperial |
| In Or Metric | Imperial |
| Dynamic Load Capacity N | 111000 |
| Dynamic Load Capacity lbf | 24800 |
| Static Load Capacity N | 166000 |
| Static Load Capacity lbf | 37200 |
| Rating | Standard |
| Weight (lbs) | 1.43 |
