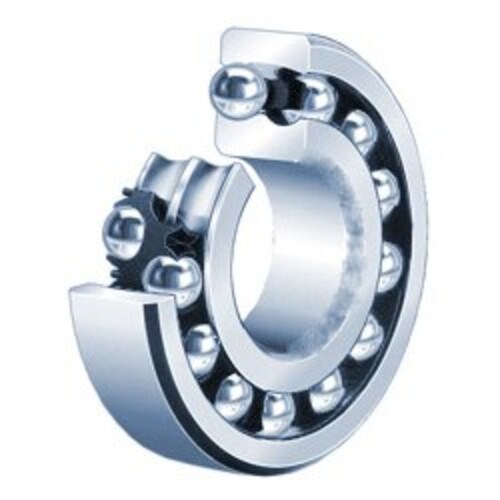

2307 ETN9/C3 - SKF
- Bore / Inner Diameter Inch: 1.378
- Bore / Inner Diameter MM: 35
- Outside Diameter Inch: 3.15
- Outside Diameter MM: 80
- Seal Type: Open
SPECIFICATIONS
| Bore / Inner Diameter Inch | 1.378 |
|---|---|
| Bore / Inner Diameter MM | 35 |
| Outside Diameter Inch | 3.15 |
| Outside Diameter MM | 80 |
| Seal Type | Open |
| Number of Rows of Balls | Double Row |
| Bearing Locking Style | Shaft |
| Rolling Element | Ball Bearing |
| Precision Class | ABEC 1 |
| Cage Material | Polyamide |
| Internal Fit / Preload | C3 |
| Inner Race Width Inch | 1.22 |
| Inner Race Width MM | 31 |
| Outer Race Width Inch | 1.22 |
| Outer Race Width MM | 31 |
