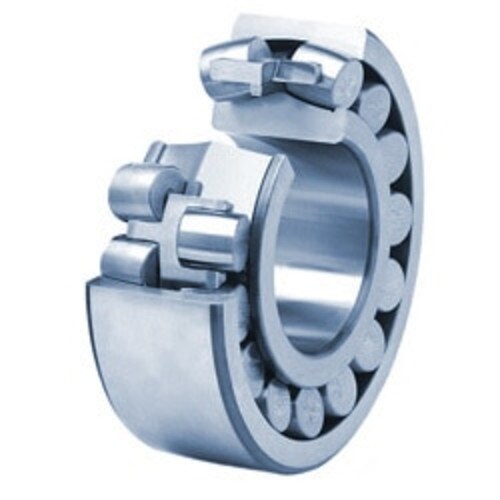

22224 E/C3 - SKF
- Bore / Inner Diameter Inch: 4.724
- Bore / Inner Diameter MM: 120
- Outside Diameter Inch: 8.465
- Outside Diameter MM: 215
- Width Inch: 2.283
- Width MM: 58
- Seal Type: Open
SPECIFICATIONS
| Bore / Inner Diameter Inch | 4.724 |
|---|---|
| Bore / Inner Diameter MM | 120 |
| Outside Diameter Inch | 8.465 |
| Outside Diameter MM | 215 |
| Width Inch | 2.283 |
| Width MM | 58 |
| Seal Type | Open |
| Number of Rows of Rollers | Double Row |
| Bearing Locking Style | Shaft Mount |
| Rolling Element | Spherical Roller Bearing |
| Cage Material | Steel |
| Bore Profile | Straight |
| Relubricatable | Yes |
| Withdrawal Nut | Not Applicable |
| Withdrawal Sleeve | Not Applicable |
| Internal Fit / Preload | C3 |
