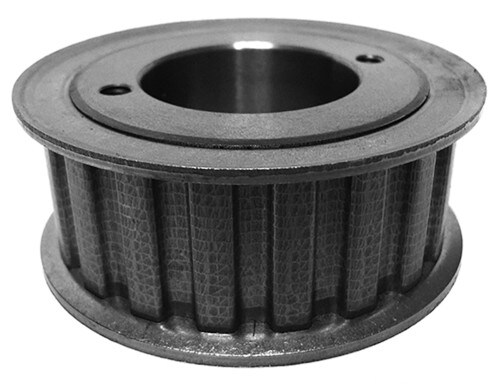

18HH100 - B & B MANUFACTURING
- Teeth: 18
- Tooth Style: H
- Type: 4
- Bushing Style: H
SPECIFICATIONS
| Teeth | 18 |
|---|---|
| Tooth Style | H |
| Type | 4 |
| Bushing Style | H |
| Bore Type | Split Taper |
| Pitch Diameter Inch | 2.865 |
| Outer Diameter Inch | 2.811 |
| Flange Diameter Inch | 3.125 |
| Minimum Bore Inch | 0.375 |
| Maximum Bore Inch | 1.4375 |
| Face Width Inch | 1.25 |
| Overall Length Inch | 1.875 |
| Pitch Diameter MM | 72.771 |
| Outer Diameter MM | 71.399 |
| Flange Diameter MM | 79.375 |
| Face Width MM | 31.75 |
| Overall Length MM | 47.625 |
| Material | Steel |
| Flange Material | Steel |
