17119-2 - TIMKEN

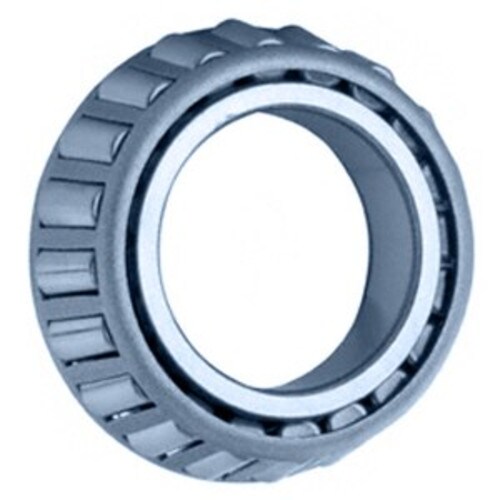

- 17119-2 - TIMKEN Tapered Roller Bearing Cones
- The most basic and most widely used type of tapered roller bearing, TIMKEN TS bearings consist of two main separable parts: the cone or inner ring and the cup or outer ring. The components are typically mounted in opposing pairs on a shaft.
SPECIFICATIONS
| Bore / Inner Diameter Inch | 1 3/16 |
|---|---|
| Bore / Inner Diameter MM | 30.163 |
| Cone Width Inch | 0.6522 |
| Cone Width MM | 16.566 |
| Model Number | 17119 |
| Series | 17000 Single Cone Imperial Single Cone Imperial |
| In Or Metric | Imperial |
| Dynamic Load Capacity N | 43200 |
| Dynamic Load Capacity lbf | 9720 |
| Static Load Capacity N | 44100 |
| Static Load Capacity lbf | 9910 |
| Rating | Standard |
| Weight (lbs) | .28 |
