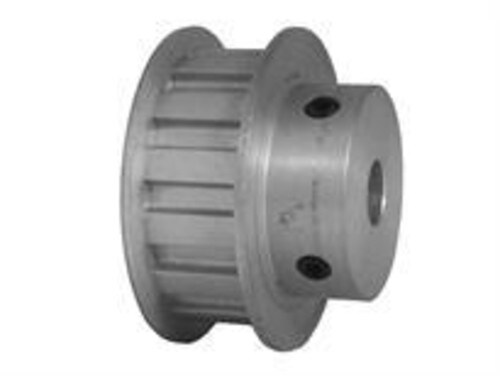

14L050-6FA5 - B & B MANUFACTURING
- Teeth: 14
- Tooth Style: L
- Type: 6F
- Bore Type: Finished Bore
SPECIFICATIONS
| Teeth | 14 |
|---|---|
| Tooth Style | L |
| Type | 6F |
| Bore Type | Finished Bore |
| Pitch Diameter Inch | 1.671 |
| Outer Diameter Inch | 1.641 |
| Flange Diameter Inch | 1.906 |
| Bore / Inner Diameter Inch | 0.375 |
| Minimum Bore Inch | 0.375 |
| Maximum Bore Inch | 1 |
| Face Width Inch | 0.719 |
| Overall Length Inch | 1.188 |
| Pulley Belt Width Inch | 0.56 |
| Hub Diameter Inch | 1.25 |
| Pitch Diameter MM | 42.443 |
| Outer Diameter MM | 41.681 |
| Flange Diameter MM | 48.412 |
| Bore / Inner Diameter MM | 9.525 |
| Face Width MM | 18.263 |
| Overall Length MM | 30.175 |
| Pulley Belt Width MM | 14.224 |
| Hub Diameter MM | 31.75 |
| Thread Size | 2 x 10-32 @ 90° |
| Material | Aluminum |
| Finish | Clear Anodized |
| Flange Material | Aluminum |
