1306-K-TVH-C3 - FAG BEARING

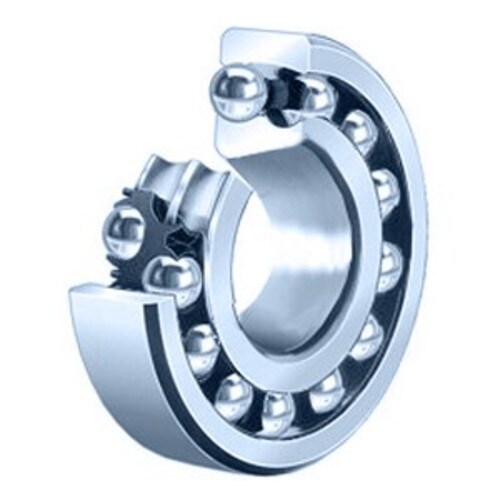

- 1306-K-TVH-C3 Ball Bearing
- Bore / Inner Diameter Inch:1.181
- Bore / Inner Diameter MM:30
- Outside Diameter Inch:2.835
- Outside Diameter MM:72
- Width Inch:0.748
- Width MM:19
- Series:
- Replacing:1306K.TV.C3
SPECIFICATIONS
| Bore / Inner Diameter Inch | 1.181 |
|---|---|
| Bore / Inner Diameter MM | 30 |
| Outside Diameter Inch | 2.835 |
| Outside Diameter MM | 72 |
| Width Inch | 0.748 |
| Width MM | 19 |
| Max Speed RPM | 11100 |
| Reference Speed RPM | 8700 |
| Minimum Temperature C | -30 |
| Maximum Temperature C | 120 |
| Dynamic Load Capacity N | 21700 |
| Dynamic Load Capacity N Radial | 21700 |
| Static Load Capacity N | 6300 |
| Static Load Capacity N Radial | 6300 |
| Replacing | 1306K.TV.C3 |
